Terraform Branch Deploy

Terraform Branch Deploy Terraform Branch Deploy

Terraform integrated into the Branch Deploy operating model.

The Problem

Traditional CI/CD deploys after merging. If deployment fails, main is broken.

flowchart TD
    A[PR Approved] --> B[Merge to main]
    B --> C[Deploy]
    C --> D{Success?}
    D -->|No| E[Main is broken]
    D -->|Yes| F[Done]

The Solution

Branch Deploy inverts this: deploy from the PR branch first, then merge only if successful.

flowchart TD
    A[PR Created] --> B[Deploy branch]
    B --> C{Success?}
    C -->|No| D[Fix and retry]
    C -->|Yes| E[Merge to main]
    E --> F[Main stays stable]

Terraform Branch Deploy applies this model to infrastructure:

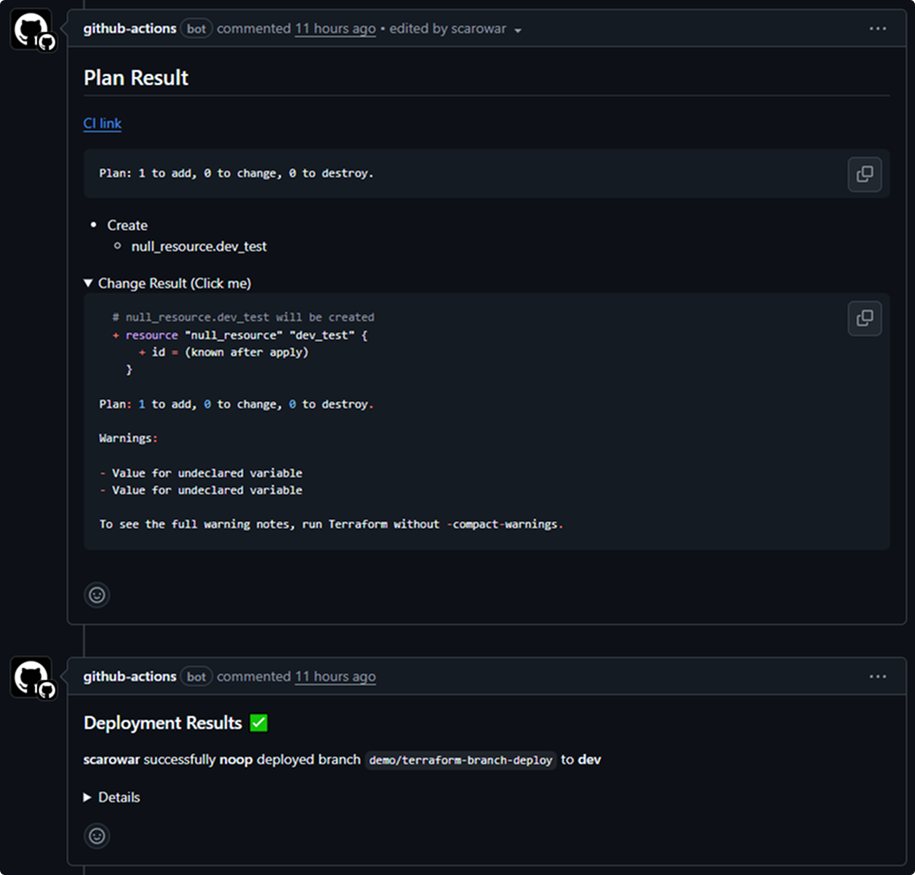

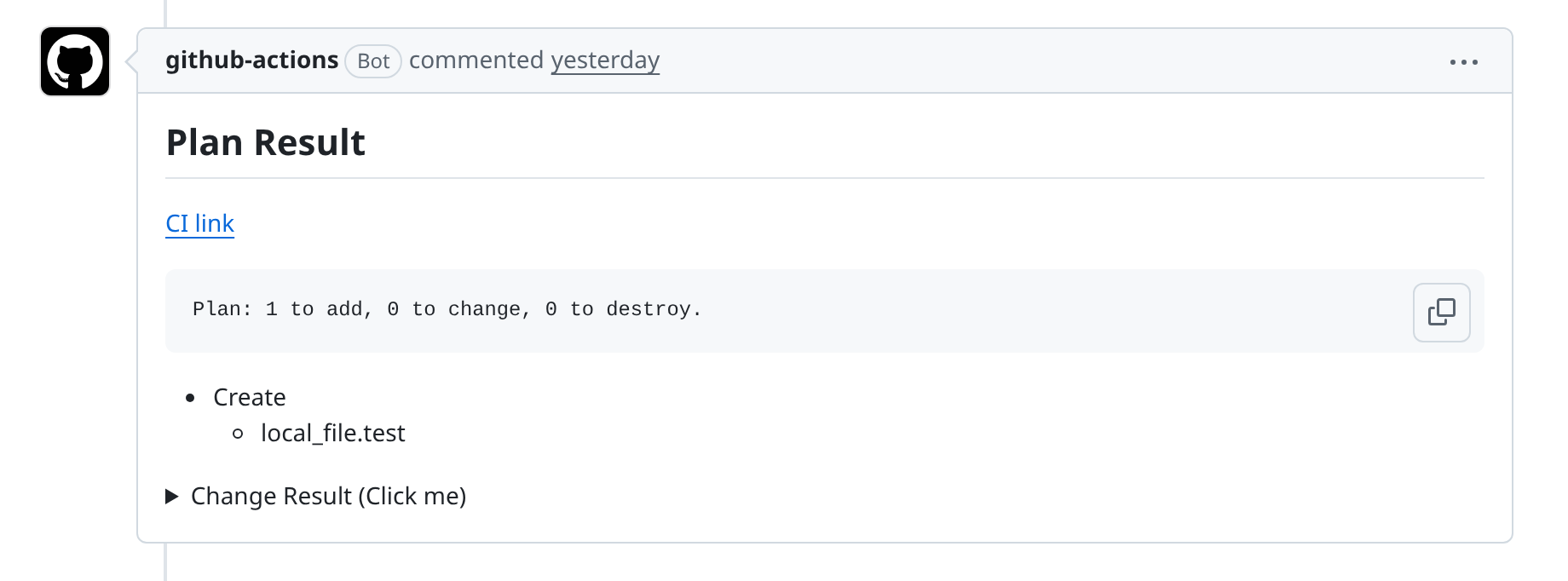

  1. Plan from your pull request
  2. Review the changes

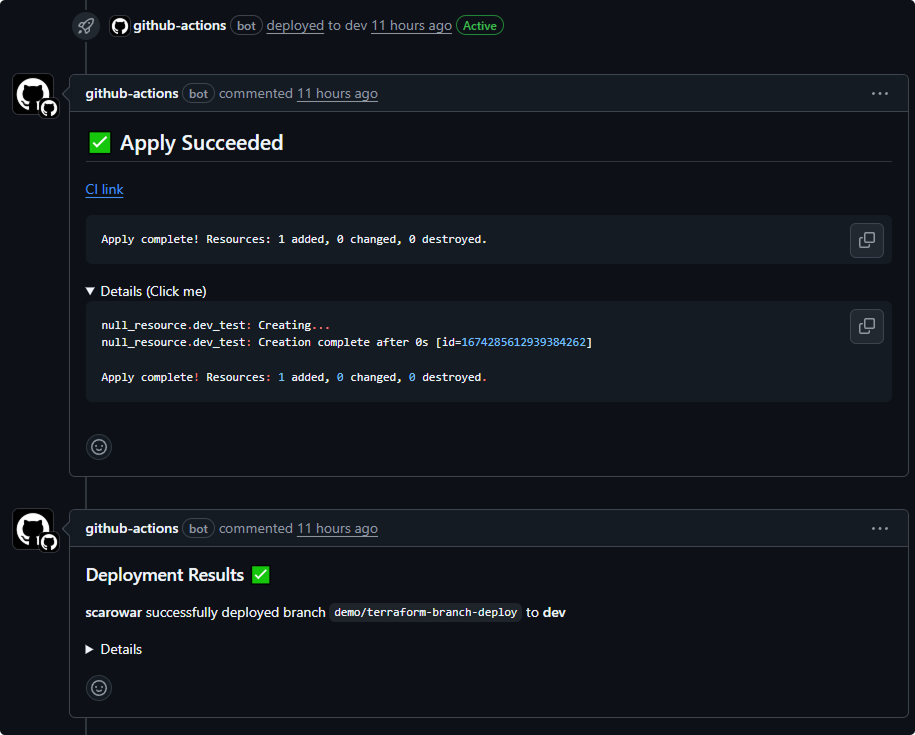

  3. Apply that exact plan

The plan is cached and checksummed. What you review is what gets applied.

Commands

Command Effect
.plan to <env> Preview infrastructure changes

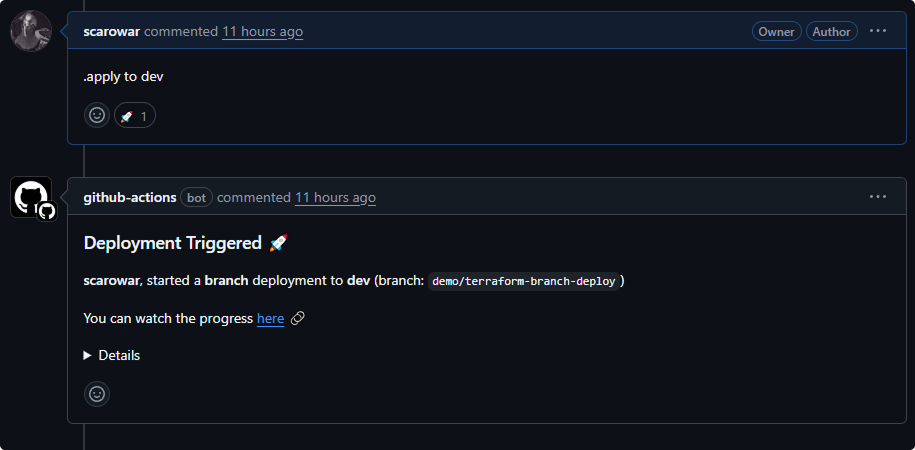

.apply to <env> Apply the reviewed plan
.apply main to <env> Rollback to stable main branch
.lock <env> Acquire environment lock
.unlock <env> Release lock

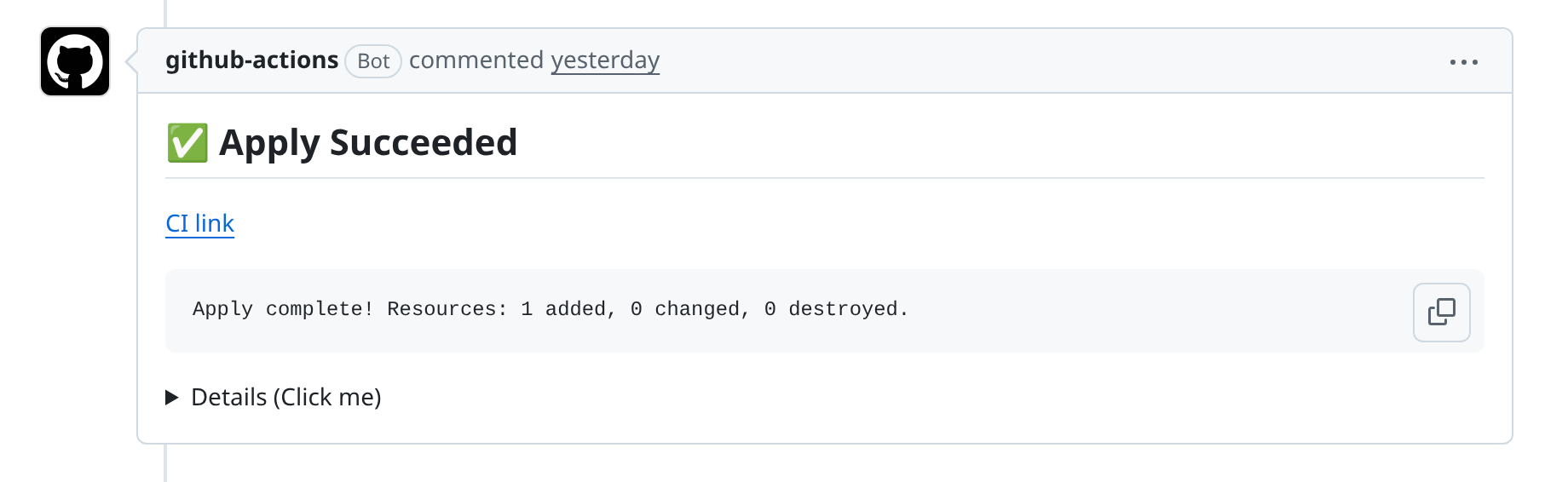

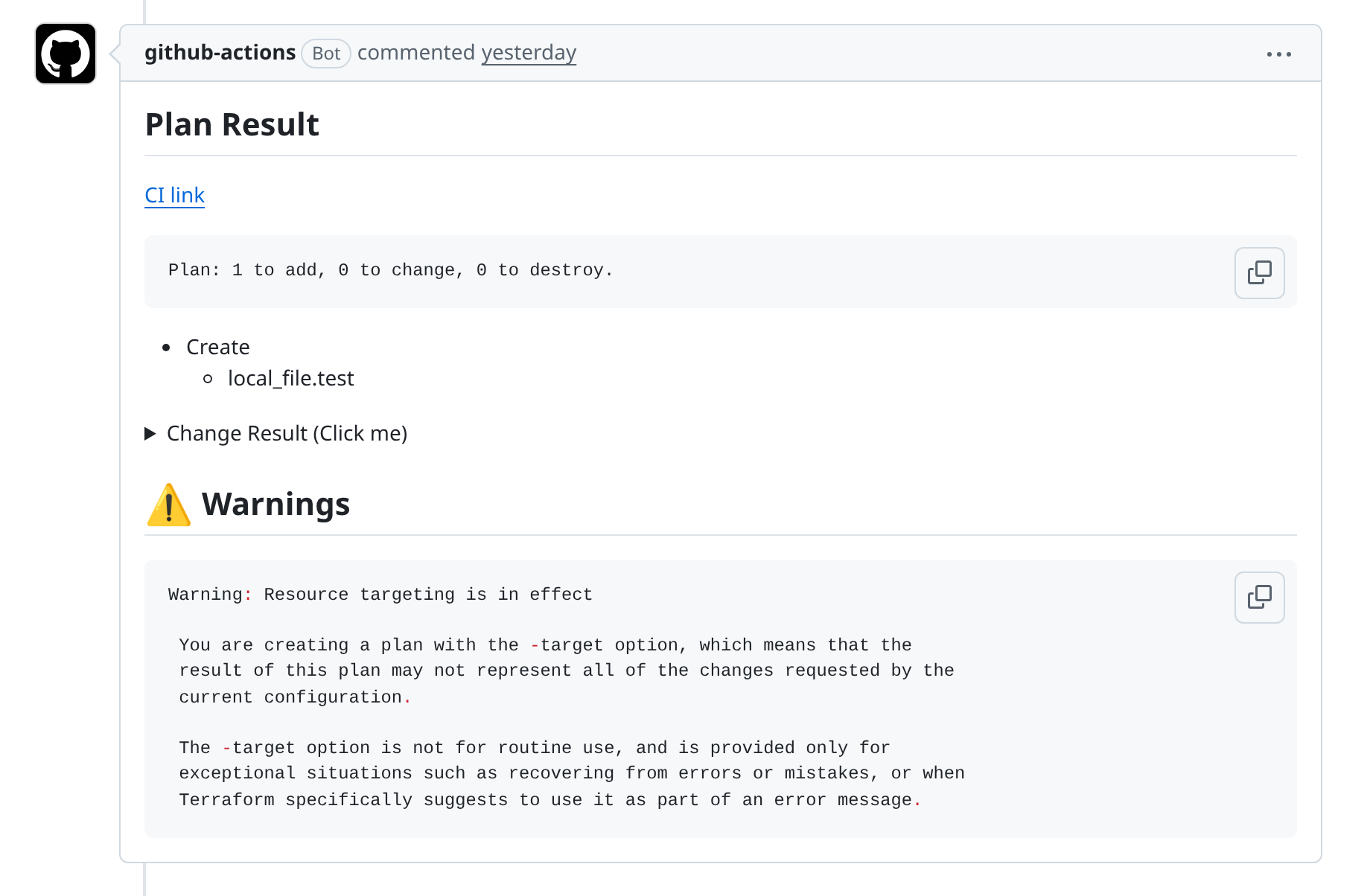

Pass extra arguments with a pipe: .plan to prod | -target=module.database

Quick Start

Create .tf-branch-deploy.yml:

default-environment: dev
production-environments: [prod]

environments:
  dev:
    working-directory: terraform/dev
  prod:
    working-directory: terraform/prod

Create .github/workflows/deploy.yml:

name: Deploy
on:
  issue_comment:
    types: [created]

permissions:
  contents: write
  pull-requests: write
  deployments: write

jobs:
  deploy:
    if: github.event.issue.pull_request
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v6

      - uses: scarowar/terraform-branch-deploy@v0.2.0
        with:
          mode: trigger
          github-token: ${{ secrets.GITHUB_TOKEN }}

      - uses: actions/checkout@v6
        if: env.TF_BD_CONTINUE == 'true'
        with:
          ref: ${{ env.TF_BD_REF }}

      - uses: scarowar/terraform-branch-deploy@v0.2.0
        if: env.TF_BD_CONTINUE == 'true'
        with:
          mode: execute
          github-token: ${{ secrets.GITHUB_TOKEN }}

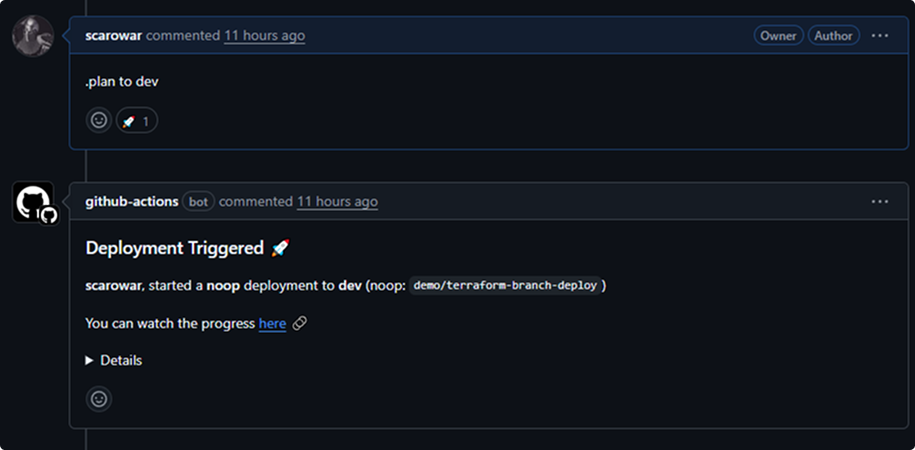

Comment on a PR: .plan to dev
